NR Series（12A）
Compact size, high load current capacity, resistance to interference, standard with mechanical indicators and LED lights, ideal for communication, automatic control, mechatronics, and power electronics.
-
Rated Insulation Voltage
250V
-
Rated Impulse Withstand Voltage
5000V
-
Rated Thermal Current
NR2M：12A
-
Degree Of Protection
IP40
Product Features
Technical Parameters
Main Parameters
|
Number and Type of Contact Pole |
Changeover |
|
Contact Material |
Silver alloy |
|
Rated Thermal Current |
12A |
|
Compliance Standards |
GB/T 21711.1 IEC 61810-1 |
|
Certificate |
UL/CQC/CE |
|
Ambient Temperature |
Storage: -40°C to +85°C, no icing or condensation Operation: -40℃~+70℃, no icing or condensation |
|
Ambient Humidity |
Storage: 5~85%RH (no condensation) Operation: 5~85%RH (no condensation) |
|
Degree of Protection |
IP40 |
|
Rated Insulation Voltage |
250V |
|
Insulation Resistance |
1000MΩ |
|
Rated Impulse Withstand Voltage |
5,000V (between breaks of same contact group 3,000) |
|
Vibration Resistance |
10-55Hz, amplitude 1.5mm |
|
Impact Resistance |
Working status 200g and non-working status 100g |
|
Pull-in Time |
≤15Ms (with surge suppression 20ms) |
|
Release Time |
≤15Ms (with surge suppression 20ms) |
|
Power Frequency Withstand Voltage |
2500V |
|
Electrical Endurance |
200,000 (resistive load) 120,000 (inductive load) (1,200 times / hour) |
|
Mechanical Endurance |
20 million (18,000 times / hour) |
|
Weight |
31g |
|
Min. Package Quantity |
20pcs |
Industry Application
-
MarineAPT products are used to measure,control or indicate the electrical equipment on ships for safety and reliability even in harsh conditions.The products include cam switches, indicators, MCBs, current transformers, etc.
-
Electric elevatorAPT products offer stable control and indication for electric elevators, ensuring their safe and stable operation. The products include cam switches, indicators, MCBs, relays,pushbutton,pushbutton boxes etc.

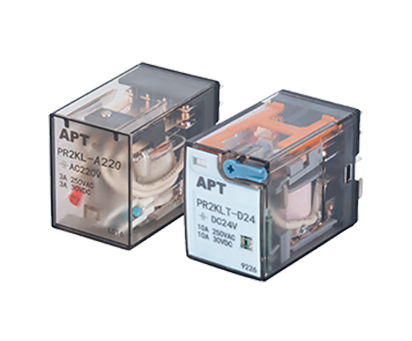

Similar Products Recommended
